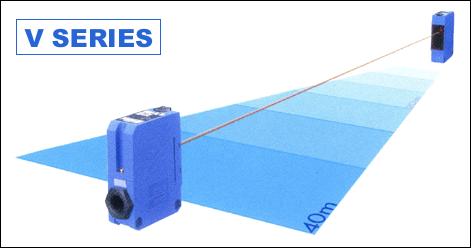

Model  Through Beam  Retro-Reflection
(with polarizing filter)		 Diffused Reflection  Diffused Reflection
(Long Range type)
Type  VT-4000 VT-4000T
(with timer function )		 VR-1000 VR-1000T(With timer function) VD-130 VD-130T
(with timer function)		 VD-300 VD-300T
(with timer function)
Max. Detecting Distance  40m 10m 1.3m 3m
Supply Voltage 12-240VDC/24-240VAC, ?font face="Arial">10%     50/60Hz
Power Consumption 8.5VA 5VA
Min. Detecting Object ?0mm ?0mm □20cm □40cm
Response Time  20ms max.
Hystereris  - 20%
Light Source  Red LED IR LED
Sensitivity Adjustment  1-turn volume (240?
Indicator  Output Indicator (Orange), Power Indicator for Emitter of Through-Beam (Red)
Timer Function - on/off Delay
0.1~10sec		 - on/off Delay
0.1~10sec		 - on/off Delay
0.1~10sec		 - on/off Delay
0.1~10sec
Operating Mode  Light On
Control Output  Relay output N.O./N.C. AC240V/DC30V 3A max. (Resistive load)
Connection Terminal chamber (Diameter of applicable cable : ? to ?0mm )
Ambient Temperature -25~+55篊 (No freezing)
Ambient Humidity  35~85%RH
Environmental Illuminance  Sun Light : 10,000lx max. Halogen Light : 3,000 lx max.
Isolation Resistance  20mΩzmin. (DC 500V)
Withstand Voltage  AC2700V 1 minute
Vibration Resistance  10-55Hz amplitude 1.5mm X,Y,Z, each 2 hours
Shock Resistance  50G(500m/s2) X, Y, Z, each3 times
Protection category  IEC 144   IP67
Material  Case/Cover : ABS (Glassfiber-reinforced) Lens : PMMA
Weight  Emitter : 70g
Receiver : 90g		 95g

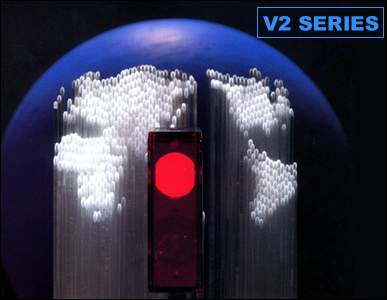

  Types  Detecting distance  Light on/
Dark on 		 Sensitivity adjustment Red LED Test input Supply voltage  Operating mode  Model
number
Through-beam 20m o o o - AC 24~240V
?/font>10%

DC 24~240V
?/font>10%

Relay 1c V2T-2000
Retro-reflection 0.01~8m o o o - V2R-800
BGS longer 20~550mm o o o - BGS-V50
shorter 10~300mm o o o o BGS-V30
Through-beam 20m o - o o DC-10~30V NPN/PNP V2T-2000DN/P
Retro-reflection 0.01~8m o o o - V2R-800DN/P
BGS longer  20~550mm o o o - BGS-V50N/P
shorter 10~300mm o o o - BGS-V30N/P
Through-beam 20m o - o o DC10~30V NPN/PNP V2T-2000CDN/P
Retro-reflection 0.01~8m o o o - V2R-800CDN/P
BGS longer  20~550mm o o o - BGS-V50CN/P
shorter 10~300mm o o o - BGS-V30CN/P


  AC/DC TYPE  DC TYPE
Model Through-
beam		 Retro-
reflection

BGS

Through-
beam		 Retro-
reflection

BGS

Type Cord type  V2T-2000 V2R-800 BGS-V50 BGS-V30 V2T-2000DN/
V2T-2000DP		 V2R-800DN/
V2R-800DP		 BGS-V50N/
BGS-V50P		 BGS-V30N/
BGS-V30P
Connector type  - - - - V2T-2000CDN/
V2T-2000CDP		 V2R-800CDN/
V2R-800CDP		 BGS-V50CN/
BGS-V50CP		 BGS-V30CN/
BGS-V30CP
Detecting distance  20m 0.01~8m 20~550mm 10~300mm 20m 0.01~8m 20~550mm 10~300mm
light source  Red LED
Detecting object ?5mm □40mm - ?5mm □40mm -
Response time  15msec max  1msec max  0.7msec max 2msec max
Hysteresis - 5% max - 5% max
Sensitivity adjustment  2 rotation volume - 2 rotation volume
Indicator Red LED
Control output  Relay output 1c 250V AC 0.3A/30V DC 2A NPN or PNP open collector
(Total 100mA 30V DC)
Test input  - Equipped  -
Operating mode - Light on / Dark on  selectable by wiring
Connection  4-core cable 2m Cable type : 4-core 2m
Connector type : M12x4
Supply voltage  12~240V DC ?/font>10%
24~240V AC ?/font>10%		 10~30V AC ?/font>10%DC
Power consumption 2VA max  35mA max  25mA max
Noise
resistance 		 JIS standard C4525 1000V
IEC
Standard		 IEC1000-4-2, 4: Level 4
IEC1000-4-3 : Level 3 		 IEC 1000-4-2,3,4 : Level 3
Withstand voltage  1000V/1sec 500V/1sec
Ambient resistance  Temp./humid  -25~55篊 / 35~85%RH
Illuminance  Sunlight 1,000 lux /Halogen light 3000lux
Vibration 10~55Hz, vibration 1.5mm, X.Y.Z 2 hours
Shook Apprx, 50G (500m/S2) X.Y.Z. 3 times
Protection IP-67 (IEC 144)
Materials  Cover : ABS (Glass fiber included )
Weight  45g (15g for emitter of through-beam type)
