Through-beam |
Diffused
reflection |
Retro-reflection |
BGS |
| Cable
type |
ST-400N/P |
SD-20N/P |
SR-150N/P |
BGS-S08N/P |
| Connector
type |
ST-400CN/P |
SD-20CN/P |
SR-150CN/P |
BGS-S08CN/P |
| Detecting
distance |
4m |
20cm |
1.5m |
10
to 80mm |
| Supply
voltage |
10
to 30 VDC |
| Current
consumption |
30mA |
20mA |
| Hysteresis |
- |
20% |
- |
10% |
| Minimum
detecting object |
?6
opaque object |
- |
□45mm
opaque object |
- |
| Response
time |
0.5ms |
| Control
output |
NPN
or PNP Open collector, Output 30VDC 100mA max |
| Operation
mode |
Light
On/Dark On selectable by wiring |
| Sensitivity
adjustment |
1-turn
volume |
5-turn
(endless) |
| Indicator |
Light
indicator (red) |
| Ambient
temp/humidity |
-25
to 55°C / 35 to 85% RH |
| Protection
category |
IP67 |
Ambient
illuminance
(Illuminance on light receiving surface) |
Sunlight
: 10,000lx
Halogen : 3,000lx |
| Shock
resistance |
100G
(X, Y, Z, 3 times each) |
| Vibration
resistance |
10
to 55 Hz, amplitude 1.5mm (X, Y, Z, 2 hours each) |
| Connection |
Cable
type : Cable length 2m ?.5mm (Longer cable type of 5m is available
as option)
Connector type : M8x4-pin connector |
| *Specification
are subject to change without notices |
|
*Specifications
are subject to change without prior notice for improvement.
|

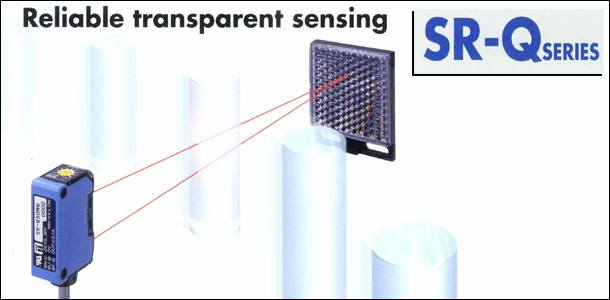

| Model |
Cable
Type |
Connector
Type |
| Type |
NPN
output |
SR-Q50NW |
SR-Q50CNW |
| PNP
output |
SR-Q50PW |
SR-Q50CPW |
| Detecting
distance |
500mm
(With V-61) |
| Light
source |
Red
LED (660nm) |
| Response
time |
0.5ms |
| Sensitivity
adjustment |
Sensitivity
volume (270°) |
| Control
output |
NPN/PNP
open collector, max. 100mA/ 30VDC |
| Connection |
4-lead
cable, 2m |
M8
4-pin |
| Isolated
resistance |
20MΩ
max. (500VDC) |
| Supply
voltage |
10
to 30VDC including 10% of ripple |
| Current
consumption |
30mA
max. |
| Noise
resistance |
JIS
Standard |
C4525
500V |
| IEC
Standard |
IEC801-2,3,4
Level 3 |
| Ambient
resistance |
Temp/humid |
-25
to 55°C / 35 to 85%RH |
| Illumination |
Sunlight
10,000 lux max. / incandescent light 3,000 lux max. |
| Vibration |
10
to 55Hz, Amplitude 1.5mm, X/Y/Z axis 2 hours |
| Shock |
Approx.
100G (1000m/s2). X/Y/Z axis 3 times on each |
| Protection |
IP67 |
| Material |
PSF+PBT |
| Weight |
Apporx.
5g (Without cable ) |
| Model |
Type |
Output |
Model
number |
Through-beam
Type (15M)
CTD-1500 |
Direct
cording |
NPN |
CTD-1500N |
| PNP |
CTD-1500P |
| Plug-in
connector (M12x4-pin) |
NPN |
CTD-1500CN |
| PNP |
CTD-1500CP |
Retro-reflection
Type (3M)
CRD-300 |
Direct
cording |
NPN |
CRD-300N |
| PNP |
CRD-300P |
| Plug-in
connector (M12x4-pin) |
NPN |
CRD-300CN |
| PNP |
CRD-300CP |
Retro-reflection
Type (1M)
(with built-in polarizing filter)
CRDF-100 |
Direct
cording |
NPN |
CRDF-100N |
| PNP |
CRDF-100P |
| Plug-in
connector (M12x4-pin) |
NPN |
CRDF-100CN |
| PNP |
CRDF-100CP |
Diffused
Reflection Type (11cm)
CDD-11 |
Direct
cording |
NPN |
CDD-11N |
| PNP |
CDD-11P |
| Plug-in
connector (M12x4-pin) |
NPN |
CDD-11CN |
| PNP |
CDD-11CP |
Diffused
Reflection Type (40cm)
(Long range detection)
CDD-40 |
Direct
cording |
NPN |
CDD-40N |
| PNP |
CDD-40P |
| Plug-in
connector (M12x4-pin) |
NPN |
CDD-40CN |
| PNP |
CDD-40CP |
|
