1020系列温度控制器
选型号资料Downloads
>>
|
| Dimensions installation Depth: |
96mm*48mm*110mm |
| Type of device: |
-digital indicator |
| Specific features: |
-big,well visible actual value indication
-analog actual value output
0-10V;0/4...20mA
-sensor programmable
|
| Sensor: |
PT100:-199...800°C(5 ranges)
thermocouples:E/J/K/L/R/S/T
standard inputs 0/4...20mA.
DC 0...10V |
| Setpoint adjustment: |
--- |
| Security lock: |
Programmable |
| Control Action: |
--- |
| Display: |
7 segment actual value:14.0mm |
| Accuracy: |
PT100:≤0.20%
thermocouples:≤0.25%
standard:≤0.20%
linearity failure:≤0.20% |
| Alarm Contact: |
1-limit-contact programmable
with hysteresis and delay |
| Outputs: |
-relay(AC 250V,Max.3A
-bist.voltage DC0...18V.MAX.10mA |
| Interface: |
RS485 |
| Connectors |
Screw terminals IP20 |
| Power supply: |
AC 115/230V--DC24V--AC24V |
|
2120系列温度控制器
选型号资料Downloads
>> |
| Dimensions installation Depth: |
96mm*48mm*110mm |
| Type of device: |
-limit value alarm
registrator with indication |
| Specific features: |
up to 4 independent alarmvalues
-analog actual value output
0-10V;0/4...20mA |
| Sensor: |
PT100:-199...800°C(5 ranges)
thermocouples:E/J/K/L/R/S/T
standard inputs 0/4...20mA.
DC 0...10V |
| Setpoint adjustment: |
--- |
| Security lock: |
Programmable |
| Control Action: |
--- |
| Display: |
7 segment actual value:10.0mm alarms:LED.yellow |
| Accuracy: |
PT100:≤0.20%
thermocouples:≤0.25%
standard:≤0.20%
linearity failure:≤0.20% |
| Alarm Contact: |
4 independent limit contacts,
programmable with hysteresis,
self hold and delay |
| Outputs: |
-relay(AC 250V,Max.3A
-bist.voltage DC0...18V.MAX.10mA |
| Interface: |
RS485 |
| Connectors |
screw terminals IP20 |
| Power supply: |
AC 115/230V--DC24V--AC24V |
|
5300系列温度控制器
选型号资料Downloads
>> |
| Dimensions installation Depth: |
48mm*48mm*110mm |
| Type of device: |
configurable
-two-priont controller
-three-point controller
-three-point-step-controller
continuous controller |
| Specific features: |
-small configuration
-universall input, |
| Sensor: |
PT100:-199...800°C(5 ranges)
thermocouples:E/J/K/L/R/S/T
standard inputs 0/4...20mA.
DC 0...10V |
| Setpoint adjustment: |
Programmable setpoint limitation and ramps |
| Security lock: |
programmable |
| Control Action: |
P,PD,PI,PD/I with autotuning |
| Display: |
7segment
-actual value 10mm
-setpoint 7,6mm |
| Accuracy: |
Pt100:≤20%
thermocouple:≤0,25%
standard inputs:≤0,20%
linearity failure::≤0,20% |
| Alarm Contact: |
max.2 independent alarms
signal-contact,limit-contact,
limit-comparator |
| Outputs: |
Relay,(AC 250V,max.3 A)
bist.voltage DC 0/18V max.10 mA
0/4...20mA,DC 0...10V |
| Interface: |
RS 485 |
| Connectors |
screw terminals IP20 |
| Power supply: |
AC 90...264V
DC/AC 24V |
|

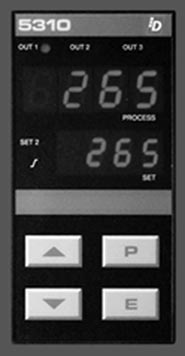

5310系列温度控制器
选型号资料Downloads
>> |
| Dimensions installation Depth: |
48mm*96mm*110mm |
| Type of device: |
configurable
-two-point controller
-three-point controller
-three-point-step-controller
continuous controller |
| Specific features: |
-universal standard controller
with many basic functions
-sensor and outputs
programmable |
| Sensor: |
PT100:-199...800°C(5 ranges)
thermocouples:E/J/K/L/R/S/T
standard inputs 0/4...20mA.
DC 0...10V |
| Setpoint adjustment: |
programmable setpoint limitation
and ramps second setpoint |
| Security lock: |
programmable/by hardware |
| Control Action: |
P,PD,PI,PD/I with autotuning |
| Display: |
7 segment
-actual value 10mm
-setpoint 7,6mm |
| Accuracy: |
Pt100:≤20%
thermocouple:≤0,25%
standard inputs:≤0,20%
linearity failure::≤0,20% |
| Alarm Contact: |
max.2 independent alarms
signal-contact,limit-contact,
limit-comparator |
| Outputs: |
Relay,(AC 250V,max.3 A)
bist.voltage DC 0/18V max.10 mA
0/4...20mA,DC 0...10V |
| Interface: |
RS 485 |
| Connectors |
screw terminals IP20 |
| Power supply: |
AC 115/230V
DC 24V
AC 24V |
|
5320系列温度控制器
选型号资料Downloads
>> |
| Dimensions installation Depth: |
96mm*48mm*110mm |
| Type of device: |
configurable
-two-point controller
-three-point controller
-three-point-step-controller
continuous controller |
| Specific features: |
-universal standard controller
with many basic functions
-sensor and outputs
programmable |
| Sensor: |
PT100:-199...800°C(5 ranges)
thermocouples:E/J/K/L/R/S/T
standard inputs 0/4...20mA.
DC 0...10V |
| Setpoint adjustment: |
programmable setpoint limitation
and ramps second setpoint |
| Security lock: |
programmable/by hardware |
| Control Action: |
P,PD,PI,PD/I with autotuning |
| Display: |
7 segment
-actual value 10mm
-setpoint 7,6mm |
| Accuracy: |
Pt100:≤20%
thermocouple:≤0,25%
standard inputs:≤0,20%
linearity failure::≤0,20% |
| Alarm Contact: |
max.2 independent alarms
signal-contact,limit-contact,
limit-comparator |
| Outputs: |
Relay,(AC 250V,max.3 A)
bist.voltage DC 0/18V max.10 mA
0/4...20mA,DC 0...10V |
| Interface: |
RS 485 |
| Connectors |
screw terminals IP20 |
| Power supply: |
AC 115/230V
DC 24V
AC 24V |
|
5400系列温度控制器
选型号资料Downloads
>> |
| Dimensions installation Depth: |
96mm*96mm*122mm |
| Type of device: |
configurable
-two-point controller
-three-point controller
-continuous controller |
| Specific features: |
-analog external setpoint
input 0-10V
-analog process value outputs |
| Sensor: |
PT100:-90...800°C(4 ranges)
thermocouples:J/K/L/S
standard inputs 0/4...20mA.
DC 0...10V |
| Setpoint adjustment: |
programmable setpoint limitation
and ramps second setpoint |
| Security lock: |
programmable/by hardware |
| Control Action: |
P,PD,PI,PD/I with autotuning |
| Display: |
7 segment
-actual value 10 mm
-setpoint 10 mm |
| Accuracy: |
Pt100:≤20%
thermocouple:≤0,25%
standard inputs:≤0,20%
linearity failure::≤0,20% |
| Alarm Contact: |
max.2 independent alarms
signal-contact,limit-contact,
limit-comparator |
| Outputs: |
Relay,(AC 250V,max.2,5A)
bist.voltage DC 0/18V max.20mA
bist.voltage electrical isolated
ext.DC 24V necessary
triac,max.AC264V,max.0,5A
0/4...20 mA/0...10V |
| Interface: |
RS 485 |
| Connectors |
plug-in terminal strip IP20 |
| Power supply: |
AC 115/230V
DC 24V
AC 24V |
|
5040系列温度控制器
选型号资料Downloads
>> |
| Dimensions installation Depth: |
96mm*96mm*165mm |
| Type of device: |
4control zones each configurable
-two-point controller
-three-point controller
-three-point-step controller
-continuous controller |
| Specific features: |
-cycle time<50ms/4 zones
-16-Bit μP-technology
-measuring transformer supply
analog setpoint input
-analog process value output
-heater current monitoring
-extensions possible |
| Sensor: |
Pt 100:-90...+800℃(4 ranges)
thermocouples:E/J/K/L/R/S/T
standard inputs 0...10V,
0/4...20 mA |
| Setpoint adjustment: |
each zone programmable:
setpoint limitation and ramps,
second setpoint,external setpoint |
| Security lock: |
programmable |
| Control Action: |
P,PD,PI,PD/I with autotuning |
| Display: |
7 segment
-actual value:10,0mm
-setpoint:7,6mm
-bargraph for divergences |
| Accuracy: |
Pt100:≤20%
thermocouple:≤0,25%
standard inputs:≤0,20%
linearity failure::≤0,20% |
| Alarm Contact: |
2 independent collective alarms
signal-contact,limit-contact,
limit-comparator |
| Outputs: |
relay(AC 250V,max.3A)
bist.voltage DC 0/18V max.10mA
0/4...20mA,DC 0...10V |
| Interface: |
RS 485 CAN in preparation |
| Connectors |
plug-in terminal strip IP20 |
| Power supply: |
AC 90...264V |
|

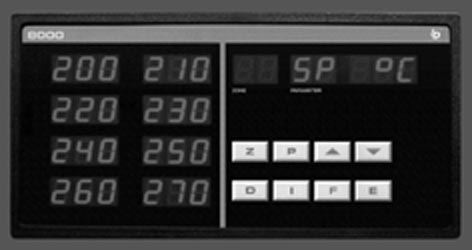

RCF8000系列温度控制器
选型号资料Downloads
>> |
| Dimensions installation Depth: |
192mm*96mm*214mm |
| Type of device: |
-8*two-point controller
-4*three-point controller(relay-output)
-8*three-point controller
(logic output) |
| Specific features: |
-8-zone controller
-simultaneous indication of 8
actual values
-heater current monitoring |
| Sensor: |
Pt100:0...+800℃(ranges)
thermocouples:J/K/L |
| Setpoint adjustment: |
programmable setpoint limitation
second setpoint |
| Security lock: |
by hardware |
| Control Action: |
P,PD,PI,PD/I with autotuning |
| Display: |
7 segment 10,0mm |
| Accuracy: |
Pt100:≤0，20%
thermocouples:≤0,25%
linearity failure:≤0,1% |
| Alarm Contact: |
1 collective-alarm(min)
1 collective-alarm(max) |
| Outputs: |
relay,(AC 250V,max.5A)
bist.voltage DC 0/18V
max.20mA |
| Interface: |
RS485,RS 232-C |
| Connectors |
plug-in terminal strip IP20 |
| Power supply: |
AC 115/230V
AC 24V
DC 24V |
|
RCQ系列温度控制器
选型号资料Downloads
>>
|
| Dimensions installation Depth: |
96mm*96mm*165mm |
| Type of device: |
configurable:
4*two-point controller
2*three-point controller
2*two-point controller
1*three-point-step controller |
| Specific features: |
-4 zone controller |
| Sensor: |
Pt100:-90...600℃(4 ranges)
thermocouples:J/K/L/S
standard inputs 0/4...20mA,
DC 0...10V |
| Setpoint adjustment: |
programmable |
| Security lock: |
----- |
| Control Action: |
P,PD,PI,PD/I with autotuning |
| Display: |
7 segment -13mm |
| Accuracy: |
Pt100:≤0,15%
thermocouples:≤0,25%
standard inputs:≤0,15%
linearity failure:≤0,05% |
| Alarm Contact: |
1 collective-alarm(min.)
1 collective-alarm(max.) |
| Outputs: |
relay (AC250V.max.5A)
bist.voltage DC 0/18V
max.20mA |
| Interface: |
----- |
| Connectors |
plug-in terminal strip IP 20 |
| Power supply: |
AC 115V
AC 230V
AC 24V |
|
QD/A系列
Point Temperature controller
选型号资料Downloads
>>
|
| Dimensions installation Depth: |
96mm*96mm*45mm |
| Type of device: |
-two-point controller
-three-point controller
-continuous controller |
| Specific features: |
-simple operation by one button |
| Sensor: |
Pt100:0...450℃(5 ranges)
thermocouples:K/L
standard inputs 0/4...20mA,
DC 0...10V |
| Setpoint adjustment: |
precision potentiometric with
analog scale and mechanical
setpoint limitation |
| Security lock: |
mechanical |
| Control Action: |
PD/I |
| Display: |
7segment actual value:10,0mm, |
| Accuracy: |
all sensors:≤1% indication
accuracy±0,1%,±1 digit |
| Alarm Contact: |
1 alarm contact:signal-contact,
limit-contact,limit-comparator |
| Outputs: |
relay(AC 250V,max.5A)
bist.voltage DC 0/10V max.10mA
current 0/4...20mA |
| Interface: |
----- |
| Connectors |
plug-in terminal strip IP20 |
| Power supply: |
AC 115/230V
AC 24V
DC 24V |
|
RM T/W系列
Point Temperature controller
选型号资料Downloads
>>
|
| Dimensions installation Depth: |
35mm*48mm*108mm |
| Type of device: |
-two-point controller |
| Specific features: |
-add-on type for rail mounting
-with adapter for front panel
installation 48mm*48mm
-Low-cost-applications |
| Sensor: |
Pt100:0...450℃(4 ranges)
thermocouples:J/K/L/S |
| Setpoint adjustment: |
analog setpoint adjustment via
potentiometric |
| Security lock: |
--- |
| Control Action: |
PD |
| Display: |
--- |
| Accuracy: |
all sensors:≤2% |
| Alarm Contact: |
---- |
| Outputs: |
relay,change-over contact
(AC 250V,max.4A)
bist.voltage DC 0/10V max.10mA |
| Interface: |
---- |
| Connectors |
11 pin plug-in socket |
| Power supply: |
AC 115V
AC 230V |
|
SGmC系列
Microcontroller based limit
value alarm registrator
选型号资料Downloads
>> |
Microcontroller based limit value
alarm reaistrator
-Programmable sensor:Pt 100;thermocouples E/K/L/R/S/T;0/4...20mA;
0...10V.
-optional with alarm memory and delay
-output:relay,change-over contact AC 250V max.3 A
-power supply:AC 115/230V;DC 24 V
-for DIN rail mounting(width 22,5mm)
application:
-monitoring of processes,
-simple two-point controlling (switching function),
-monitoring of analog values for further processing to a PLC module.
|
SSU系列
Intelligent Interface Converter
选型号资料Downloads >>
|
Intelligent Interface Converter
-indispensable for coupling of digital controllers and indicators
with a standard-PC. A simple windows software is available
-converts the signal level of interfaces RS 232-C or 0...20mA to the
level of RS 422 and RS 485.
-inputs and outputs are electrcally isolated.
-RS 485 or RS 422 interface with autodirection set between transmit
and receive.
max.transmission speed 38,4 kBaud.
-dimension 75*55*110mm (L*W*D)
-for DIN rail mounting installation 35 mm.
|
TSA系列
Electronic AC Zero voltage switches
选型号资料Downloads >>
|
-the control input is galvanically seperated
from the load circuit
-to prevent electro-magnetic faults the load is switched on during
zero voltage crossing.
-the minimum switch-on perid is 10ms(at 50HZ Line frequency).
- load current from 50mA up to 75mA eff.at iperating voltage of AC48
to 510V can be handled.
-all models are designed as compact units with:semiconductor
curcuits(SSR or thyristor modul),heat sinks and clips for DIN rails.
-main applications are:machine control,closed-loop control
technology,power metering,signal control,process auto mation etc..
-special advantages:no switching noise,no switching noise, logic-
compatible,actuation,simple addembly,partial shock protection(VBG4) |
-
|
|
|
